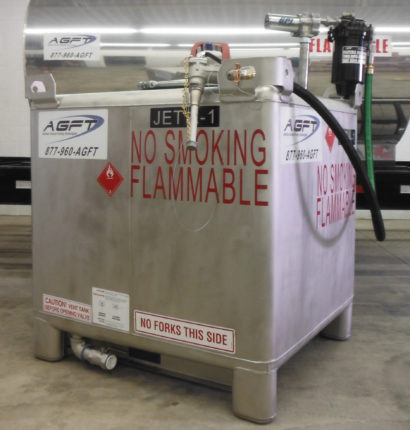

TOTE TANK

AGFT's tote tanks are ideal for mobile refueling operations. They are built for portability, safety, and ease of operation. AGFT's tote tanks are fully customizable to meet our client's specifications.



Additional Features

  • 10 gauge (.135"/3.4 mm), 304 stainless steel with 2B finish
  • 1,325 litre capacity
  • Patented one-piece1-1/2" (3.81 cm) sloped bottom
  • 2" (5.08 cm) discharge valve with an internal extension pipe
  • 1" (2.54 cm) drain valve
  • Heavy-duty lifting lugs and leg positioners
  • 3" (7.62 cm) metal or poly combination filling cap and fusible vent
  • 22-5/16" (56.6 cm) top opening/manway with fill port, EPDM gasket, zinc-plated bolted clamp ring, formed neck
  • 2" (5.08 cm) top pressure vacuum vent with 5 PSI pressure, .5 PSI vacuum
  • 6 1/2 (H) (16.6 cm) radius corner legs with caps
  • Forklift channels: 2-way
  • UN markings

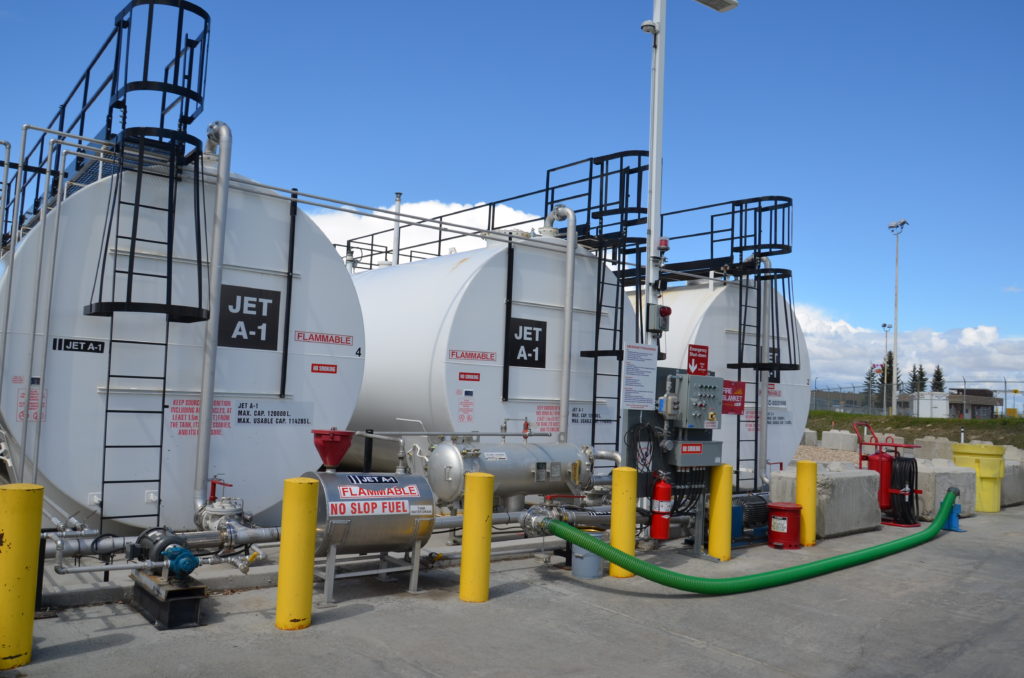

STATIC TANK

The static tank is portable or stationary and ranges in size from 500 litres to 100,000 litre capacity.  They have an epoxy coated interior aviation fuels and double wall construction. They can be skid or saddle mount tank bases.

Standard Features

  • Manufactured to CAN.ULC-S601-07
  • Vacuum monitored
  • White enamel exterior coating



  • Emergency vents
  • Manway access - 24" or 36"
  • Dipstick c/w chart

Optional Features

  • Electric or manual water draw pumps
  • Pressure / Vacuum vents
  • Product-level gauges
  • Electronic fuel management monitoring systems
  • Floating suction
  • Overfill protection systems
  • Remote top fill piping
  • Flange or full coupling fittings



  • Access stairs and platform or full catwalk
  • Steel beam base support with optional extensions for dispensing cabinet mounting
  • Full built-in vehicle protection barriers
  • Remote (ground level) fill system: c/w tanker connection spill box, pump, filtration
  • Remote monitor communication package
  • Check product levels or usage with click of a mouse from anywhere
  • Receive e-mail alerts

Capacities Available: 2,500 Litre to 100,000 Litre
Common Industry Standard Capacities:
10,000 Litre, 25,000 Litre, 50,000 Litre
